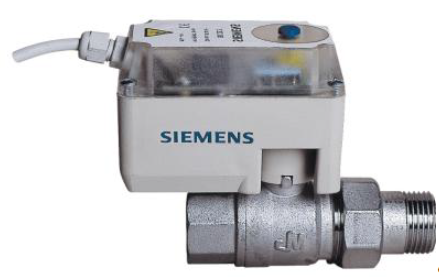

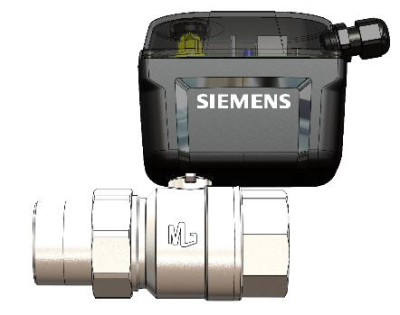

SIEMENS 2-WAY VALVE AND ACTUATOR
Description:
Two port ball valves and actuator SIEMENS for use as a flow control valve in heating, ventilation and air conditioning systems.
Valve VBZ:
- Chrome plated hot pressed brass valve body
- Chrome plated sphere (ball)
- P.T.F.E. Ring
- O-ring Viton
- Temperetaure of fluid water 0°C...95°C
- Working pressure PN16
- Max. differential pressure 8 Bar
- Available diameters: 1/2”...11/4”
Actuator SBC28.2B:
- Operating voltage 230VAC
- Nominal angle of rotation 90° - Bidirectional rotation
- Run-time for 90° rotation: 90sec
- 2-position control signal
- Degree of protection: IP65
- Built in connection cable
