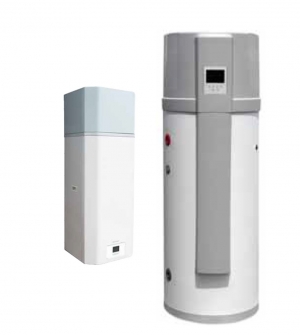

Maxa CALIDO PRO Monobloc Heat Pump Water Heater
The Maxa CALIDO PRO heat pumps are air-to-water systems specifically engineered for high-efficiency domestic hot water (DHW) production.
The Maxa CALIDO PRO heat pumps units feature outstanding energy performance with an elevated seasonal coefficient of performance (SCOP) and low running costs, delivering significant energy savings compared to conventional gas boilers or standard electric water heaters..
hey boast an attractive, compact design that enables quick and straightforward installation.
Product Lineup & Models:

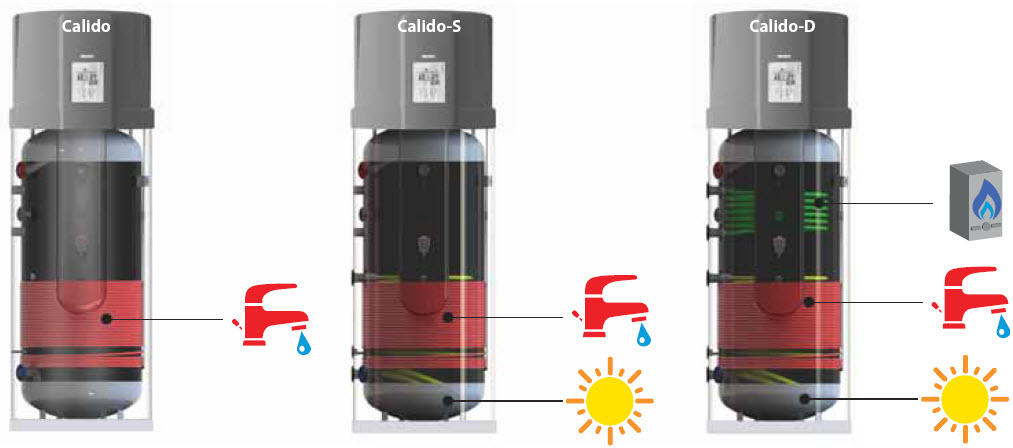

The Maxa CALIDO PRO series includes the following models:
- CALIDO PRO 130CT & 150CT: Compact wall mounted models with 130L and 150L tank capacities and an integrated 1.5 kW electric backup heater.
- CALIDO PRO 200CT & 300CT: Standard floor-standing models with a high-grade stainless steel tank (actual storage capacities of 190L and 260L, respectively) and an integrated 1.5 kW electric backup heater.
- CALIDO PRO 200CT-S & 300CT-S: Floor-standing models with a stainless steel tank (190L and 260L capacity), featuring an additional integrated heat exchanger (1.1 m² coil) for connection to solar thermal collectors or auxiliary heat sources, plus an integrated 1.5 kW electric backup heater.
- CALIDO PRO 500CT-S: High-capacity floor-standing unit with a 500L stainless steel tank, an integrated auxiliary heat exchanger (1.1 m² coil) for increased hot water demands, and an electric backup heater 3.0 kW.
Main Technical Features:
- High-Durability Stainless Steel Tank: Storage vessel constructed from premium Duplex Grade 2205 stainless steel for maximum protection against corrosion.
- Maintenance-Free (No Magnesium Anode Needed): Thanks to the all-stainless-steel tank construction, no sacrificial magnesium anode is required, greatly reducing routine maintenance.
- External Heat Exchanger: The condenser coil is wrapped externally around the tank, eliminating any possibility of contact or contamination between domestic water and the refrigerant fluid.
- High-Efficiency Compressor & Refrigerant: Equipped with a high-efficiency compressor using R134a refrigerant and built-in high/low-pressure safety protection.
- Electric Backup Heater: Integrated electric heating element with a safety thermostat, guaranteeing continuous hot water supply even in extreme winter conditions.
- Flexible Air Ducting: Adaptable air intake and discharge connections supporting 3 different duct diameters (150 mm, 160 mm, 200 mm).
- Smart Controls & WiFi Connectivity:
- Digital controller supporting versatile operating modes for optimized DHW production (ECO, BOOST, AUTO, PV MODE).
- Remote management and real-time monitoring via WiFi using the Aqua iConnect app for smartphones and tablets (iOS & Android).
- Photovoltaic Integration (PV Input): Dedicated signal contact for connection to a solar PV system/inverter, enabling self-consumption of surplus solar energy for water heating and thermal storage.
- Hygiene & Automatic Functions:
- Automatic thermal disinfection cycle against Legionella bacteria (Anti-legionella) at 65°C.
- Automatic defrost system.
